Bridge and Structural Engineering Planning with STRAKON

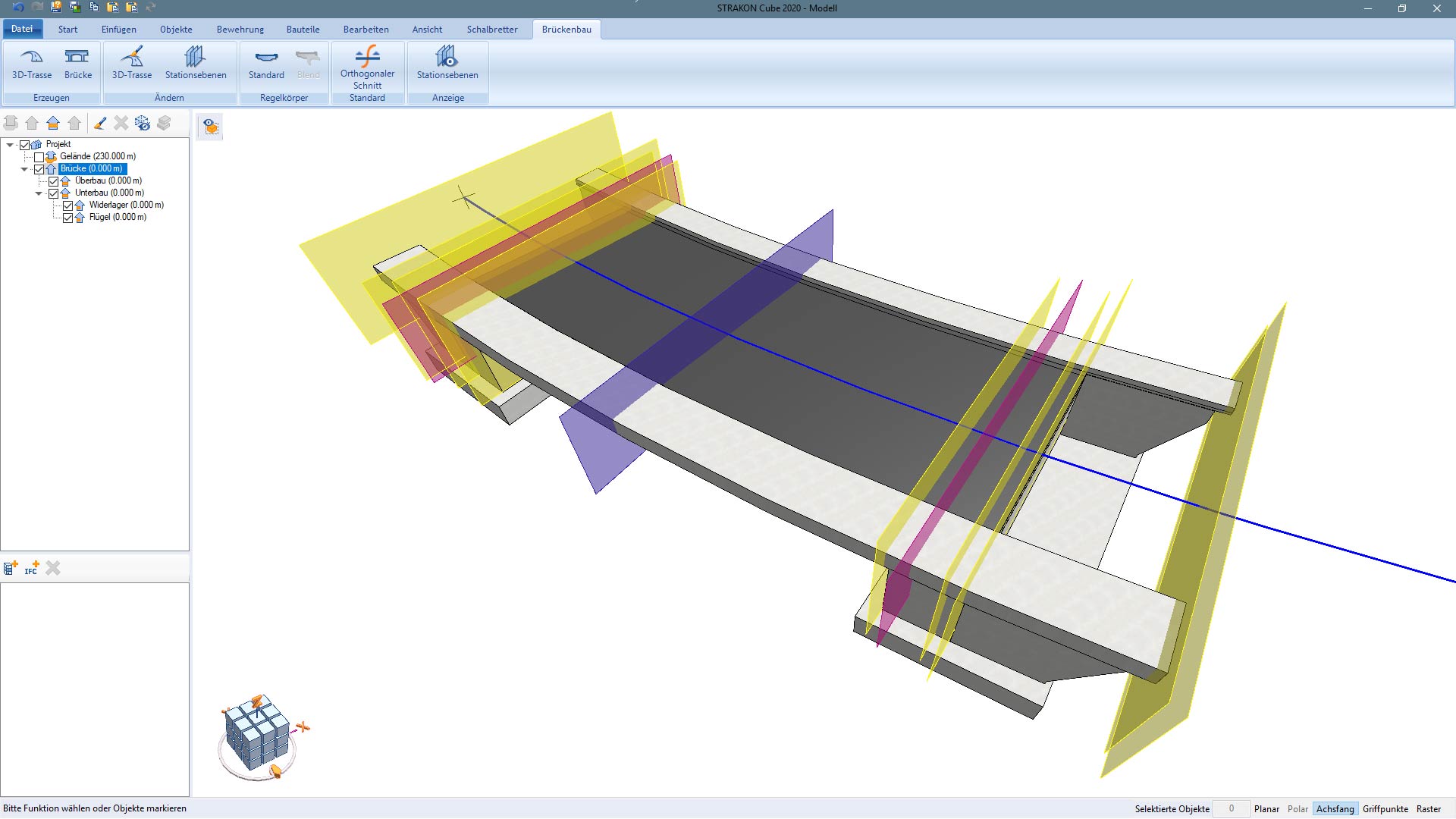

In addition to buidling construction, the CAD software STRAKON offers you:- automated planning through integrated STRAKON Bridge/Tunnel Designer
- individual automated planning of bridge superstructures also with change of cross slope, cross section changes, widening, outcropping ...
- manual input or import of corresponding files from roadways, gradients, D40, D21
- automatic creation of 3D routes with clothoids, arcs, parabolas etc.
- curve cuts
- automatic evaluations, e.g. height table in self-definable grids

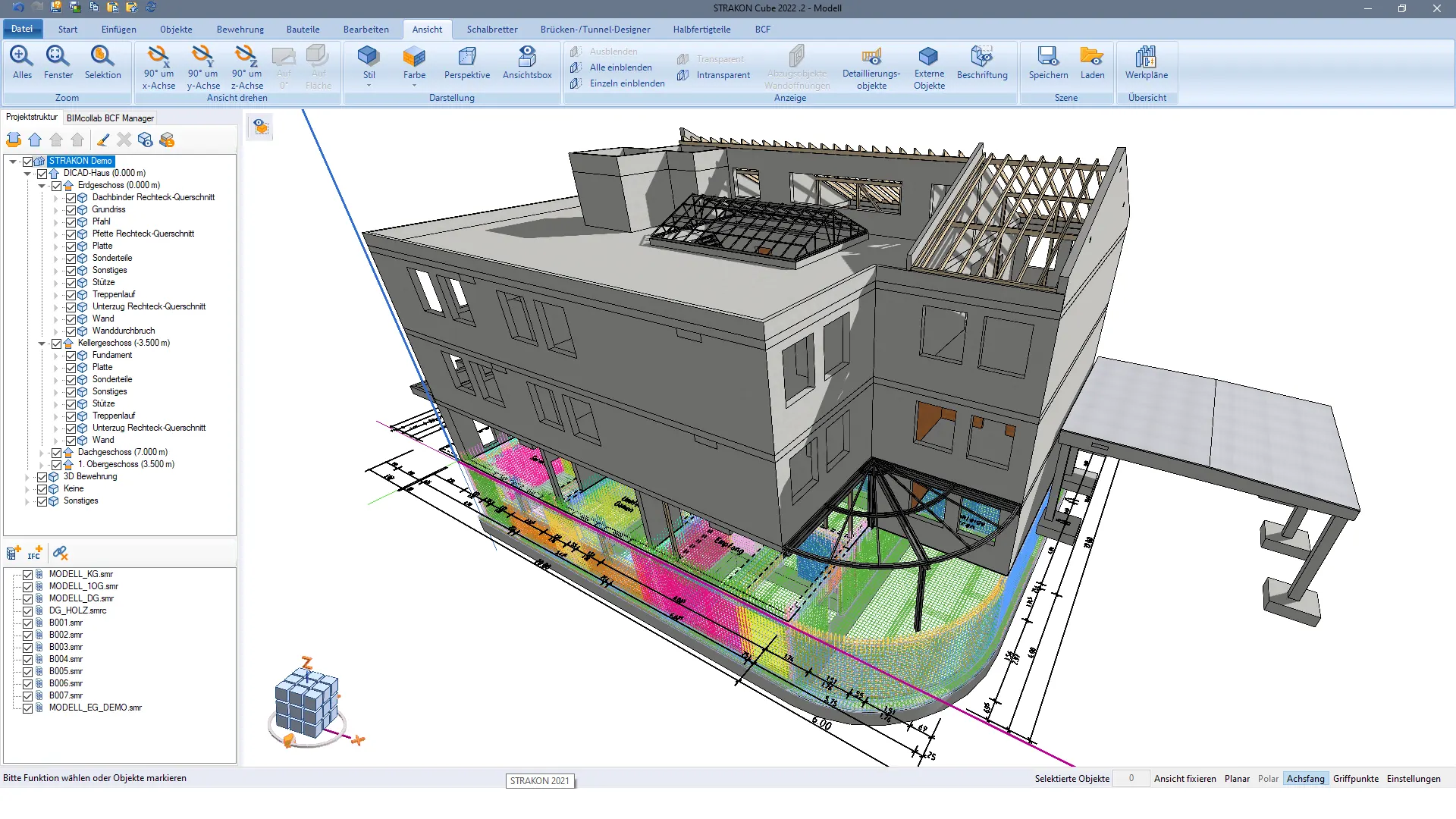

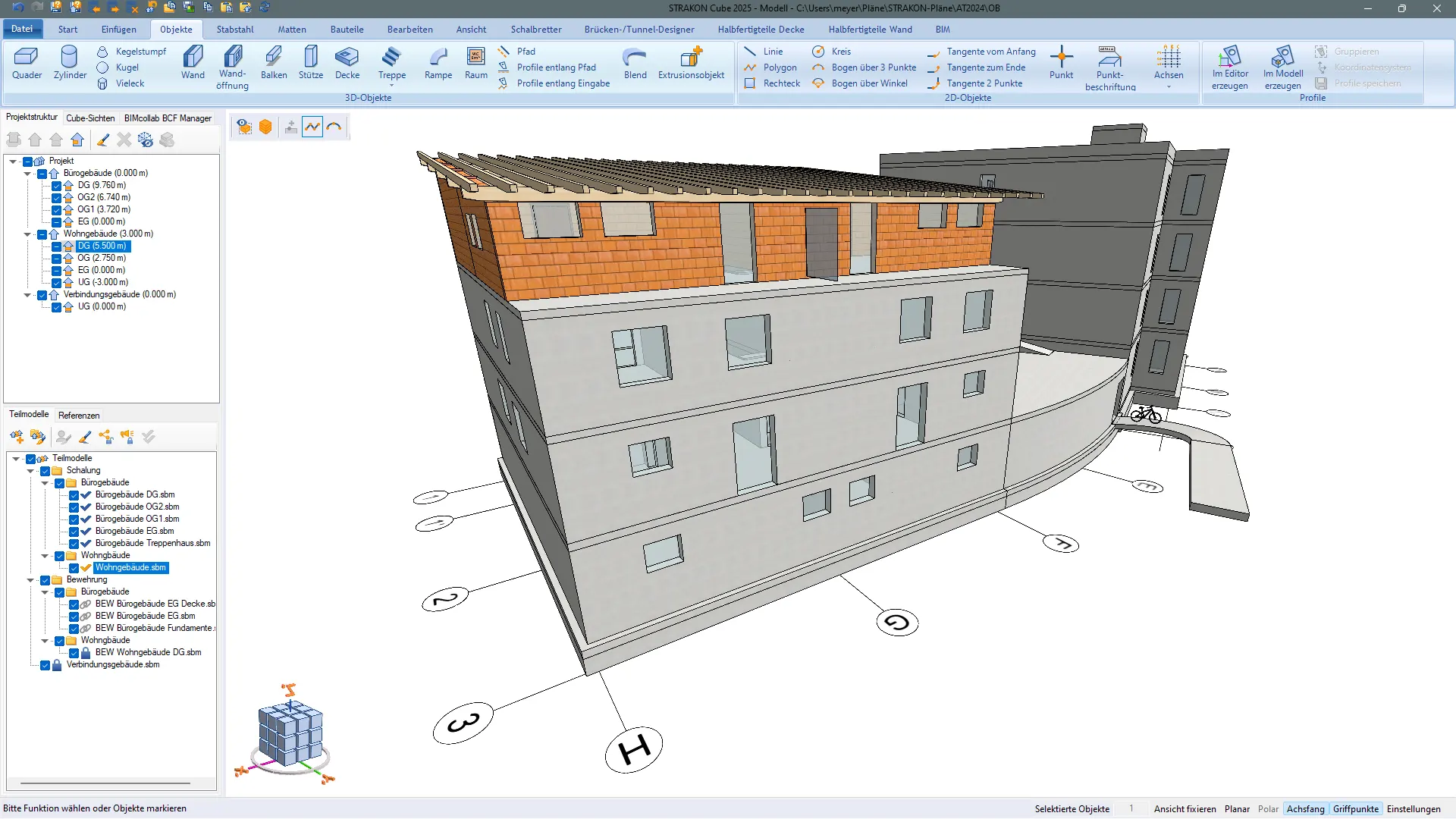

- 3D/BIM planning of abutments, tunnels, round tanks, power plant towers etc. with the modern BIM technology "STRAKON-Cube".
- beautiful professional 2D or 3D plans as a result
- world coordinates (Gauß-Krüger, UTM) and point labels

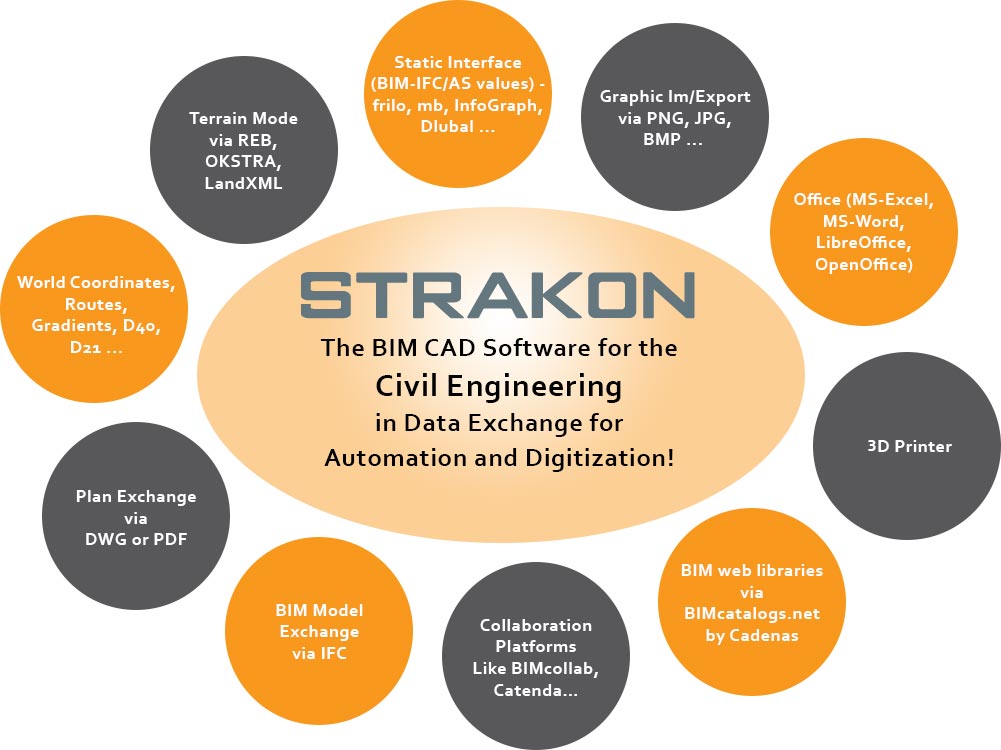

- IFC-Interface
- import of 3D terrain models via REB, OKSTRA, LandXML

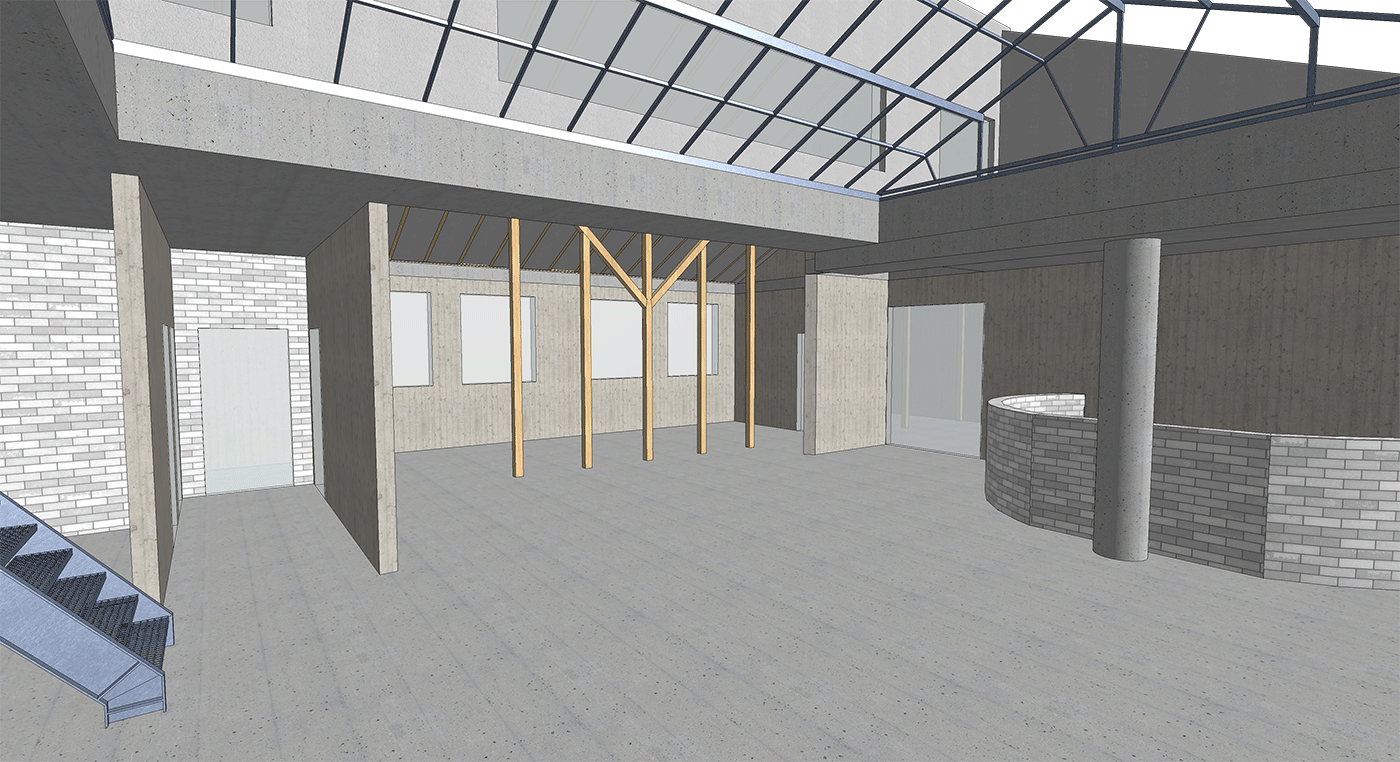

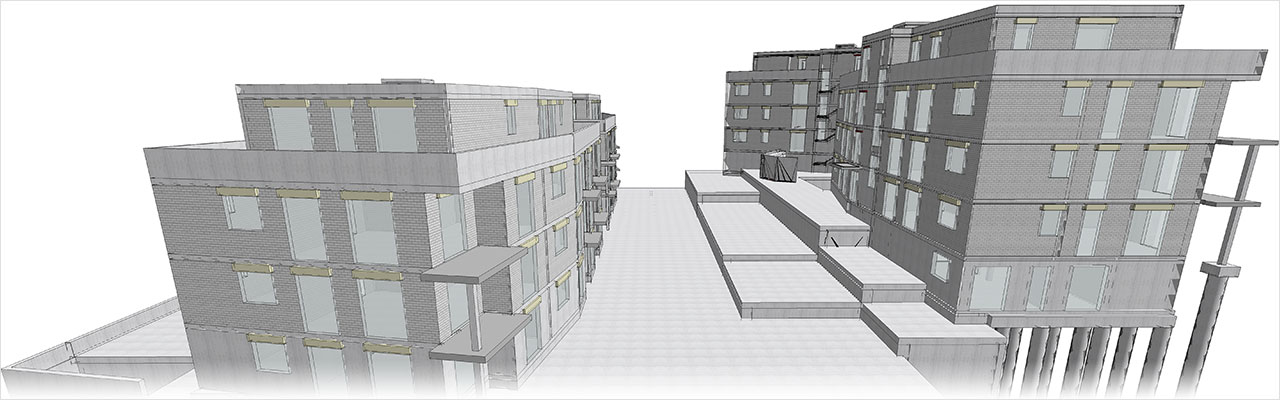

- 3D/BIM presentation possibilities from the finest on the plan, as image or live

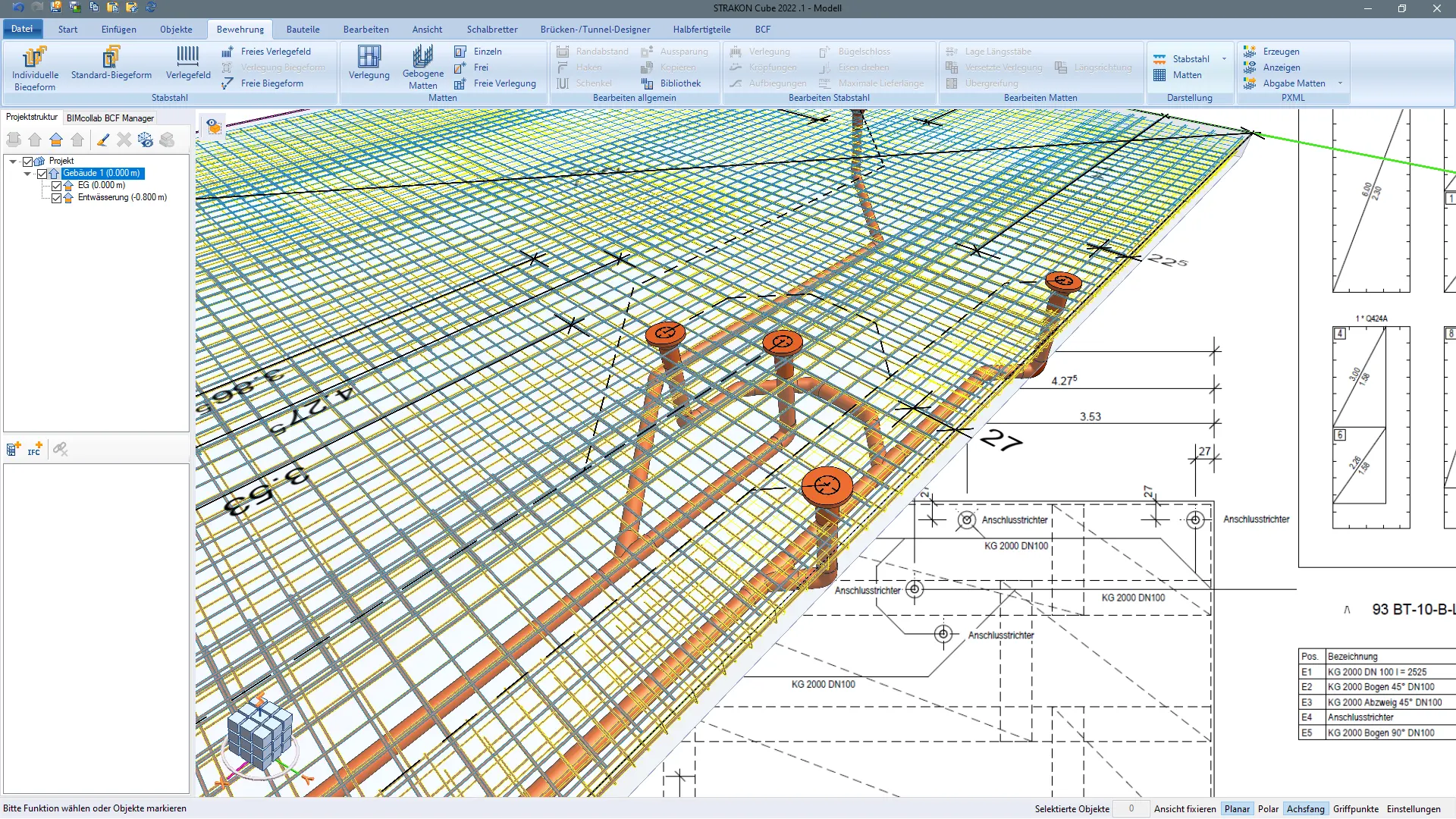

- best reinforcement planning for bridges and engineering structures
- buidling construction, construction engineering, civil engineering, industrial construction, bridge construction, tunnel construction, power plant construction, structural precast parts, semi precast parts
Are you interested?
Let us advise you and find out what special advantages our software can offer you.
