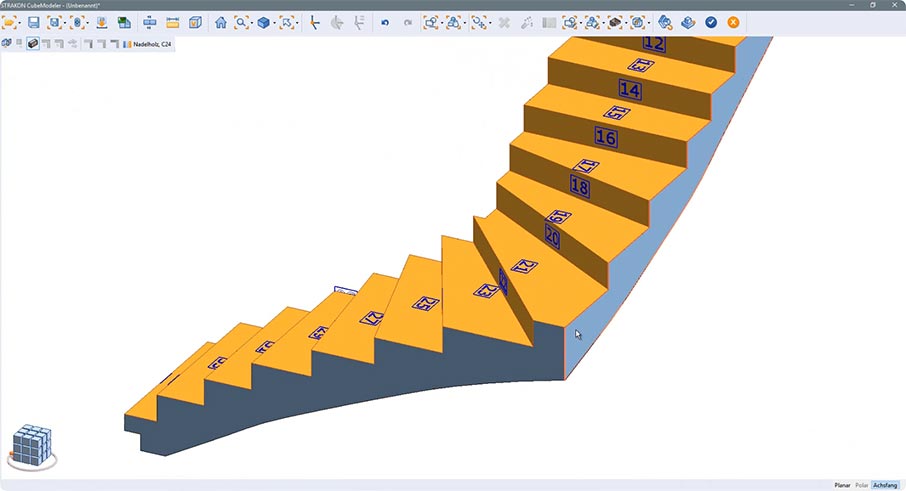

Formboards Formwork Construction (DE)

Automation is being advanced in precast factories. As formwork construction is very complex, more and more precast factories are having the formwork boards produced using a 5-axis milling machine. STRAKON supports this trend with the formwork module. The formwork is automatically generated from own or IFC-read 3D parts. This data is then transferred to a milling machine software for processing.
